UNICAN IMMOBILIZER EMULATOR PROGRAM FOR RENAULT ECUs COMMUNICATING THROUGH CAN BUS ON 250 AND 500 Kbps.

For proper operation, we need to program the CAN speed on which the ECU operates and the 6-byte ISK code from the ECU.

In the cell at address 0x01, we enter CAN bus speed value 50 or 25, which gives 500 Kbps or 250 Kbps respectively.

In the cell at address 0x02, we have a value of 0xFF which sets automatic recognition of the type of immobilizer library used in the ECU.

In cells starting from address 0x10, enter the 6 bytes of ISK code from the ECU that we intend to unlock.

When providing technical support, we help customers to determine the synchronisation code.

An example ISK code: A5 A5 A5 A5 A5 A5, is factory programmed into the UNICAN emulator.

In case ECUs SDI321, EMS3140, EMS3141, EMS3160, MD1CS006, etc. using HSM/SHE, we can perform ISK calculations, please contact us.

Here additional info about ISK RECOVERY SERVICE

In the case of many types of Renault ECUs, appropriately restoring the ECU to a 'virgin’ state will result in the data from the emulator being rewritten to the controller during the auto-adaptation procedure when the power is switched on.

Four wires should be connected: CAN-H, CAN-L, GND (ground) and +12 V IGN ( terminal „15”) or +12 V after the ECU/ECM relay. Ensure the connection adheres to the vehicle’s repair schematics.

The colors of the corresponding wires are specified in the photo.

The location of the eeprom 24C02 memory is also specified in the photo.

Please remember the CAN terminator – terminator resistor, is in many cases indispensable especially when the ECU works standalone.

The description of the green and red LEDs can be found in the photo, thanks to them we can carry out diagnostics of the emulator connection, they clearly indicate the current status of the CAN bus connection and the status of matching to the ECU.

In 90% of cases, there is no need for a relay to cut the CAN bus line, as everything is handled by the emulator software, provided that the CAN bus is not physically damaged and that there are no damaged or unpowered modules connected to the data bus.

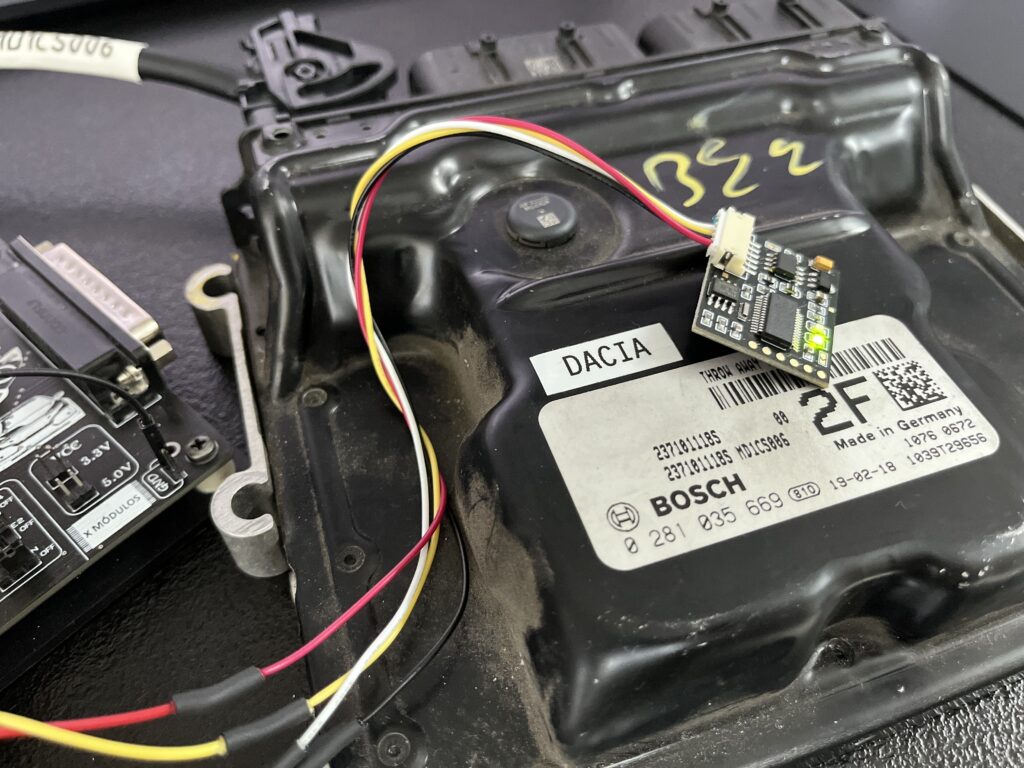

In the photo, you can see one of the frequent 'guests’ on my laboratory table, the MD1CS006.

We calculate the ISK, add the UNICAN emulator, and perform extensive testing on many of these ECU controllers.

Importantly, we do not open these ECUs to recover the ISK code, ensuring that they remain in their original condition
