UNICAN IMMOBILIZER EMULATOR PROGRAM FOR ALL BOSCH, VDO, LUCAS GASOLINE AND DIESEL MERCEDES FBS2 ECUs COMMUNICATING THROUGH CAN BUS AT 125 AND 500 Kbps.
For proper operation, we need to program the CAN speed on which the ECU operates and the 4-byte synchronisation code from the ECU.
In the cell at address 0x01, we enter CAN bus speed value 50 or 12, which gives 500 Kbps or 125 Kbps respectively.
In the cell at address 0x02, we have a value of 0xFF which sets automatic recognition of the type of immobilizer library used in the ECU.
In cells starting from address 0x10, enter the 4 bytes of synchro code from the ECU that we intend to unlock.
When providing technical support, we help customers to determine the synchronisation code.
The emulator does not require an SD diagnostic tool for adjustments.
Four wires should be connected: CAN-H, CAN-L, GND (ground) and +12 V IGN ( terminal „15”) or +12 V after the ECU/ECM relay. Ensure the connection adheres to the vehicle’s repair schematics.

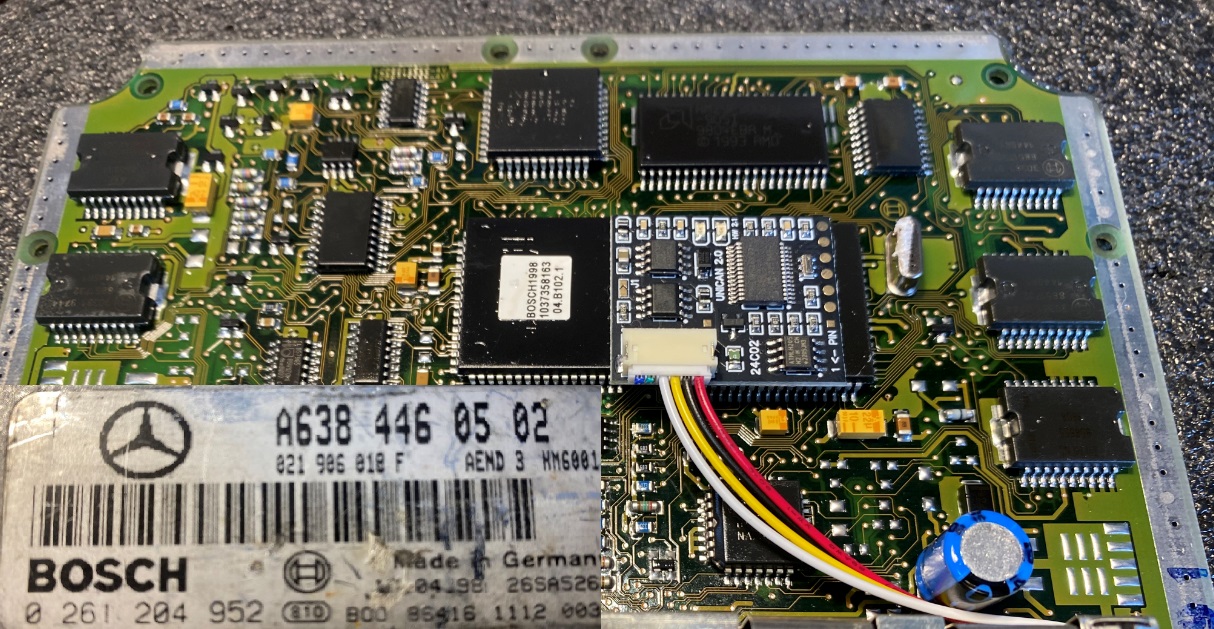

The colors of the corresponding wires are specified in the photo.
The location of the eeprom 24C02 memory is also specified in the photo.
Please remember the CAN terminator – terminator resistor, is in many cases indispensable especially when the ECU works standalone.
The description of the green and red LEDs can be found in the photo, thanks to them we can carry out diagnostics of the emulator connection, they clearly indicate the current status of the CAN bus connection and the status of matching to the ECU.
In order to use this solution, the customer must be qualified as an automotive electronics technician and have the necessary diagnostic tools and wiring diagrams.
In the event of problems and the need for technical support, a CAN bus analyzer will be required in addition to the ECU files, as well as the ability to operate it.
